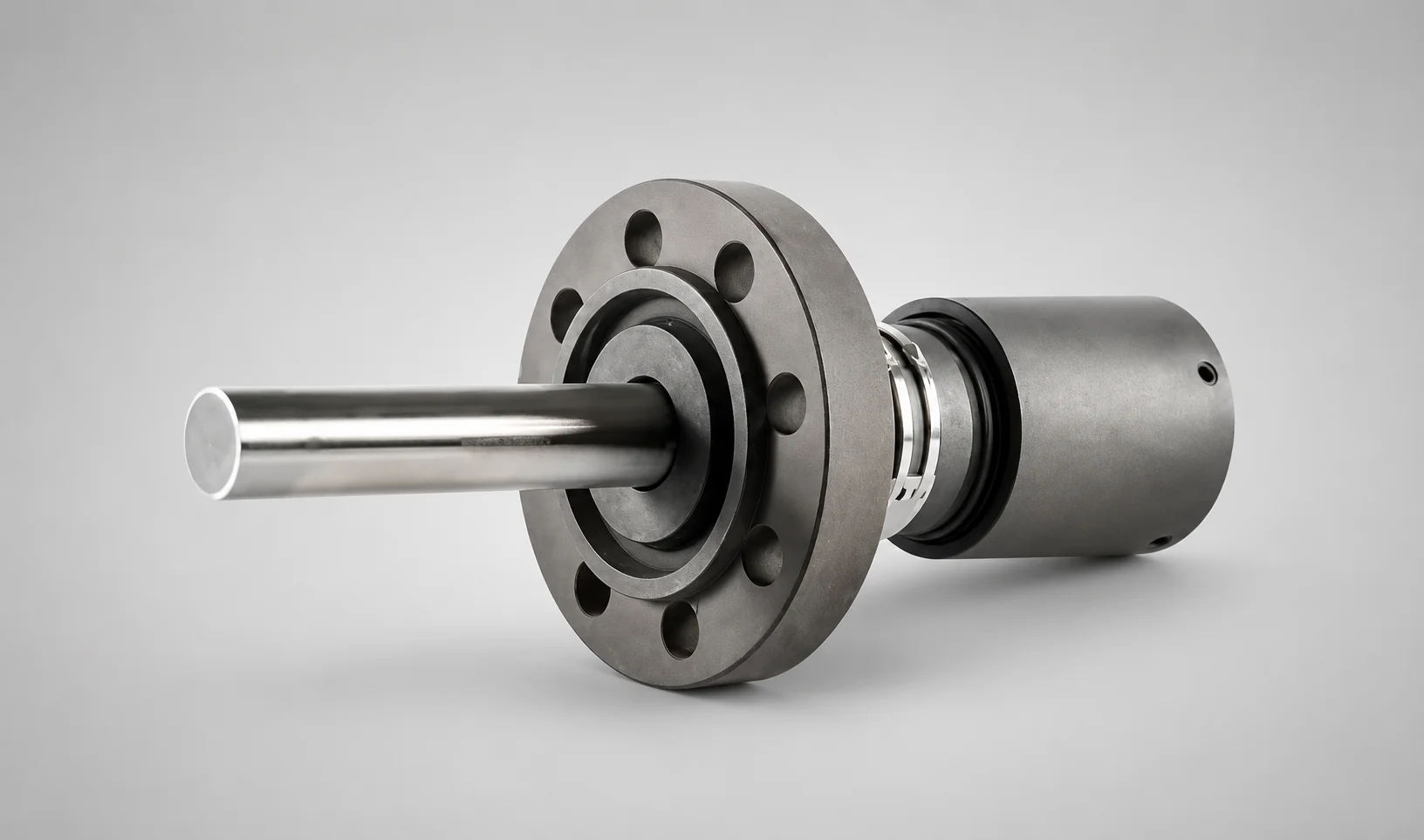

Ultraweld Coat are the best High Pressure Access Fittings Service Providers in Pune, an Indian company, are specialty piping configurations that provide interior access to production plant vessels and pipework that is being used in full process conditions. The industry standard for corrosion monitoring for these types of access systems is predicated on a nominal bore design of two inches. As leading High Pressure Access Fittings Service Providers in Pune,our services enable the installation and retrieval of the following while in use in conjunction with a retrieval tool and service valve:
High-performance access systems engineered for corrosion monitoring and chemical injection under high pressure:

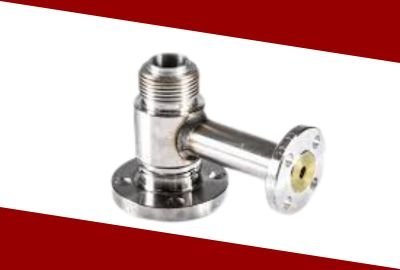

The ANSI B16.5 – Specification for Flanges and Flanged Fittings is followed in the manufacturing of ANSI flange fittings.

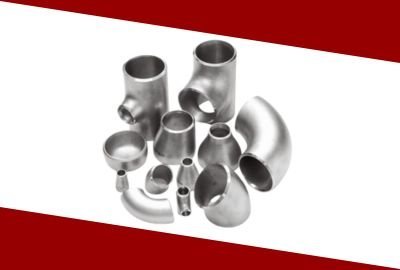

The purpose of buttweld access fittings is to be buttwelded straight to a 2″ pipe end.

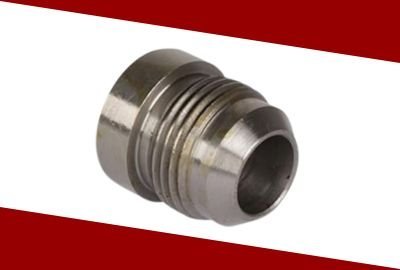

In addition to having a radius machined into the base to match the curvature of the pipe or vessel to which the body is welded, these bodies feature a strengthened welding neck.

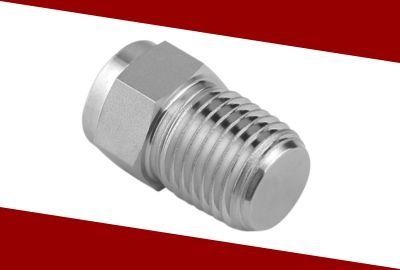

The plug is an essential part of the Crystal high pressure access fitting assembly because it maintains line pressure by acting as a seal in the access fitting.
Production of oil and gas is the industry that uses high pressure access fittings the most. When it comes to removing or installing corrosion monitoring devices in high pressure operations, customers find it difficult to depressurize and shut down process systems. Find the Pune’s top high pressure access fittings services at Ultraweld coat,visit us for your needs of industrial services.
Qualified for high-pressure operations up to 10,000 PSI, supporting ASME Class 1500 and 2500 ratings.
Available in multiple mounting configurations, including flanged connections, threaded, and Weldolet/Sockolet type mountings.
Carbon steel base fittings (A105, LF2, F316) with Inconel 625 or Duplex CRA overlay on all wetted parts.
All designs, welds, and QA procedures comply with NACE MR0175 and ASME B31.3 standards.
The access fitting body is welded permanently to the pipe or vessel. A plug inside it carries the monitoring or injection device and seals the line. To change the device, a service valve and retrieval tool are mounted on the fitting; the tool withdraws the plug through the valve, the valve is closed, and the device is changed, all while the line stays in service at pressure.
| Device | Purpose | Plug type |
|---|---|---|
| Corrosion coupon | A weighed metal sample that shows metal loss over time | Solid |
| Corrosion probe | Electrical measurement of corrosion rate | Solid |
| Injection quill | Delivers chemical into the centre of the stream | Hollow |
| Sampling tube | Draws a sample of the process fluid | Hollow |
Position matters as much as the hardware. Water collects at the bottom of a line, so monitoring points for water-phase corrosion are often at the six o’clock position, while top-of-line positions watch for condensation corrosion in wet gas. Clearance for the retrieval tool has to be allowed for in the layout.
Access fittings work alongside corrosion inhibitor injection skids: the skid doses the inhibitor, and coupons and probes in the fittings show whether the dose is effective.
An Access Fitting is an access system to introduce the access of corrosion coupons, probes or Injection quills with out shutting down the normal operations. These are made of four Components Access fitting Solid Plug Service Valve Retrieving Tools
Access fittings can be made in Inconel 625, stainless steel, copper, Hastelloy C, Nitronic stainless steel and other exotic metals. The material is chosen for the fluid in the line and for the pressure and temperature it operates at.
Crystal Industrial Access Fittings operate up to 450 to 500 bar pressure.
