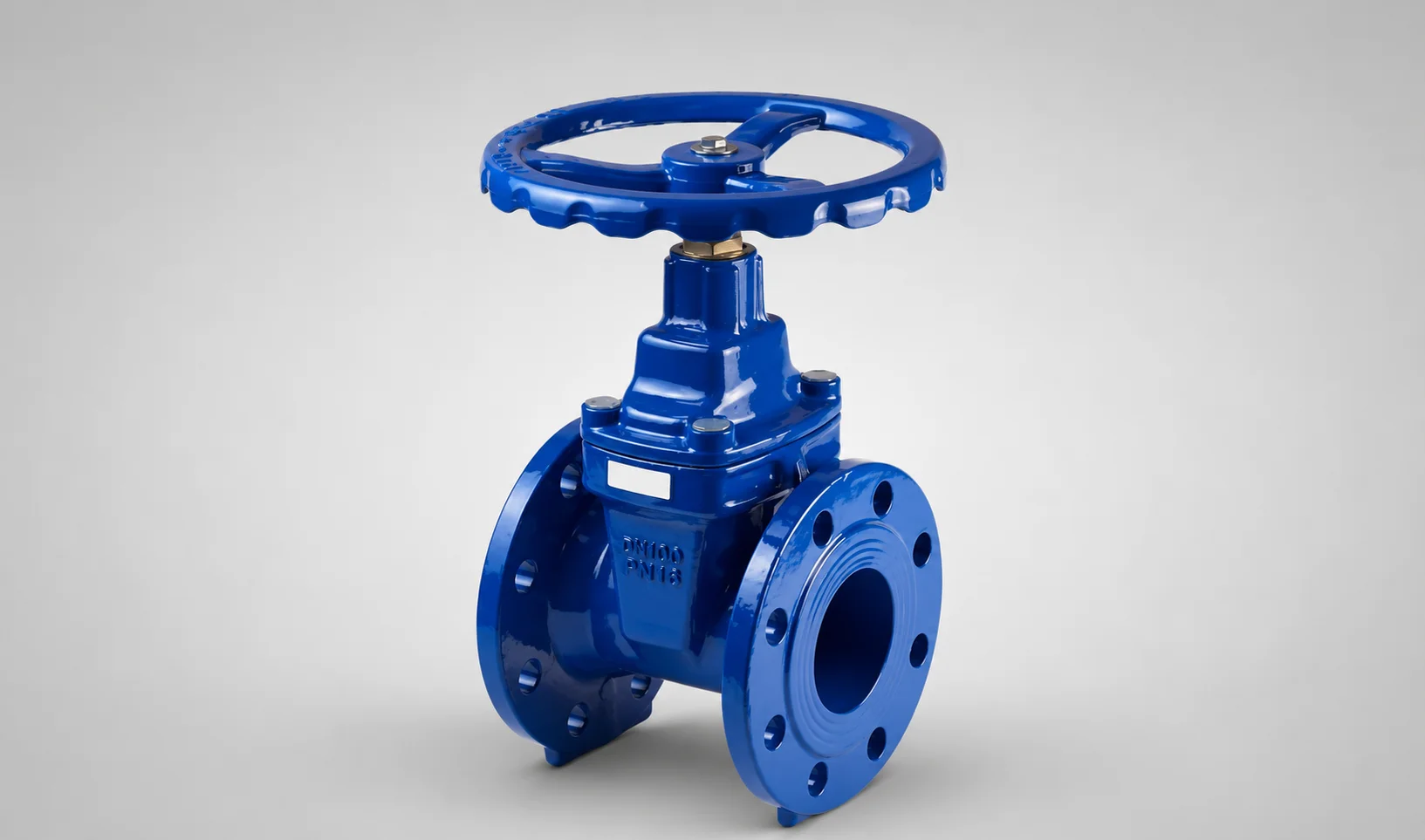

We are the best Gate Valve manufacturer in Pune. At Ultraweld coat we are offering top quality gate valves which will find fine results in your industrial operations. Gate valves are versatile and reliable devices used primarily for on/off control in pipelines. Their ability to provide a full flow path with minimal pressure drop makes them suitable for a range of applications. While they are not ideal for throttling or flow regulation and may require more time to operate, their durability and effectiveness in fully open or closed positions make them a valuable component in many industrial systems. We are renowned as the best Industrial gate valve manufacturer in Pune. Our valves are designed to make industrial operation smooth and fine.
Gate valves are widely utilized in standard and high-performance piping networks:
The full-bore design ensures unimpeded fluid flow with minimal turbulence and pressure loss.
Constructed with premium alloys and robust metal-to-metal seating for long operational life under extreme conditions.
Specifically designed to provide reliable on/off control and bubble-tight isolation in high pressure pipelines.
The full-bore design helps in maintaining a low pressure drop across the valve, which is particularly important in applications where efficient flow is critical.
As a leading Industrial gate valve manufacturer in Pune, our valve operates by raising or lowering a gate (or disc) within the valve body.
Most gate valves use metal-to-metal sealing, which provides a robust seal, especially in high-pressure and high-temperature applications.
This gate slides up and down between two seats to open or close the flow path.
As a leading Industrial gate valve suppliers in Pune, typically constructed from brass, bronze, stainless steel, or alloys. The material must be resistant to the fluid's corrosive effects and wear.
Gate valves are built in several designs, each suited to a different duty:
| Design | How it seals | Typical use |
|---|---|---|
| Wedge gate | A tapered gate is driven between two inclined seats | General isolation of liquids, gas and steam |
| Parallel slide or slab gate | A flat gate slides between parallel seats | Pipelines; a through-conduit bore lets pigs pass |
| Knife gate | A thin, sharp-edged gate cuts through the medium | Slurries and fluids carrying solids |
The stem can be rising, where its position shows at a glance whether the valve is open, or non-rising, which needs less headroom.
A gate valve is meant to be fully open or fully closed. Left partly open, the gate sits in the flow, vibrates, and the high-velocity stream erodes the lower edge of the gate and the seats. For flow regulation, a control valve or a suitable butterfly valve is the right tool.
The gate faces and seat rings take all the wear. They are hardfaced with Stellite or coated with tungsten carbide, then ground and lapped flat so the metal-to-metal seal holds. For corrosive service the wetted surfaces can also receive weld overlay cladding.
It is not recommended. A gate valve is designed to be fully open or fully closed. Left partly open, the gate vibrates in the flow and the fast-moving fluid erodes the gate edge and the seats, so the valve soon stops sealing properly.
A slab gate valve whose gate has a bore the same size as the pipe, so the open valve presents a smooth, uninterrupted passage that pipeline pigs can pass through.
A rising stem moves up as the valve opens, so its position shows at a glance whether the valve is open, and the thread stays outside the fluid. A non-rising stem turns without moving up, which suits installations with limited space above the valve.
